ANTI DRONE PRODUCT’s TECHNICAL DESCRIPTION

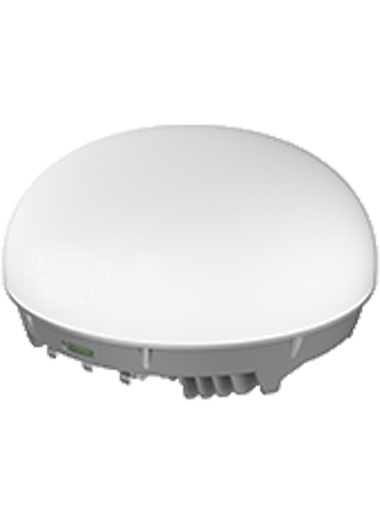

Product Name:Fixed Navigation Spoofer

Place of Manufacturing (City & Country): Hangzhou, China

Specifications:

1.Operating Frequency: GPS L1/L2/L5, GLO L1/L2, BDS B1/B2, GALILEO E1, QZSS L1

2.Deception Radius: ≥30km

3.Navigation Interference Radius: ≥10km

4.Effective Operating Angle: Horizontal 360°

5.Deception Response Time: ≤10s

6.Power Consumption: ≤100W

7.Startup Time: ≤30s

8.The spoofer has GNSS positioning function and reports latitude and longitude coordinates.

9.Power Supply: AC: 90V～260V or DC: 24V

10.Operating Temperature: -41℃～+70℃

11.Enclosure Protection Level: IP66

12.Dimensions: 388mm*388mm*214mm

13.Power supply requirements：AC 220V

14.Weight: ≤10kgs

15.Material:ABS plastics
